Faders [Tab 28]

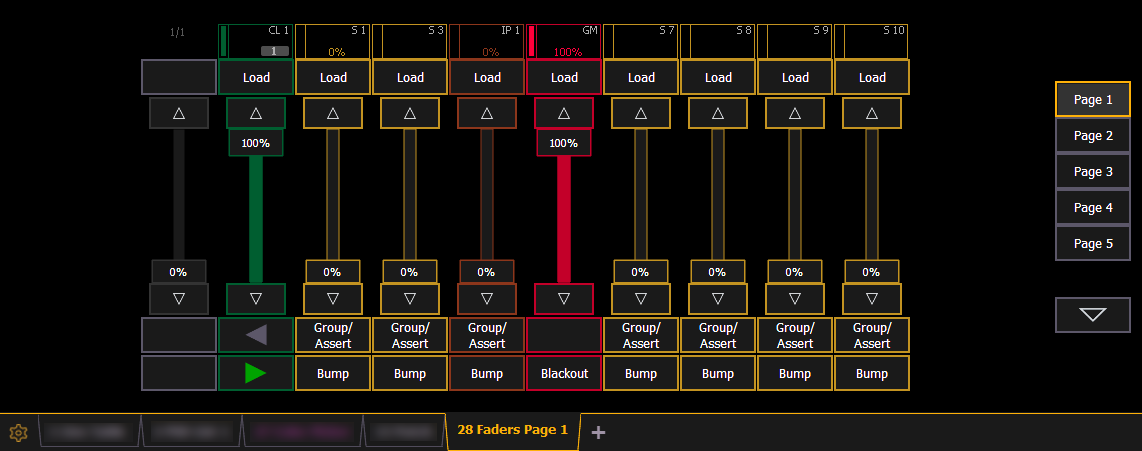

The Faders display ([Tab] [2][8]) provides pages of virtual fader modules.

For information about configuring your faders, see Fader Configuration [Tab 36].

Faders Tab Configuration

Tab configuration menus contain additional sets of context-specific options for a display. They can be accessed from the bottom of the Tab Tools by right-clicking or double-tapping either the tab or the gear icon to the left of the frame's tab bar.

The following options are available:

• Layout
  • Rows - sets the number of rows used for the module. Maximum number of rows is six.
  • Columns - sets the number of columns used for the module. Maximum number of columns is six.
  • Show Main Fader Pair - check this box to display the virtual master fader pair. Unchecked by default.
  • Fader Display - check this box to display the virtual master fader pair. Unchecked by default.
• Faders
  • Use Faders
  • Use Nudge Buttons
  • Use Fader Ticks
• Buttons
  • Use Load Button
  • Use Button 2
  • Use Button 1
• Control Buttons
  • Control Button Position
  • Use Arrows
  • Use Century Buttons
  • Page
  • Number of Page Buttons
  • Use Record
  • Use Jump To
  • {Jump To}

You can save your current settings as the default state for the tab. The current default is identified in parentheses.

• {Reset to Default} - returns the settings to the default state that you created.
• {Set Current as Default} - uses the current settings and tab number to create a new default state . The default tab will be shown in parentheses.
• {Reset to Eos Default} - removes your saved default and returns all settings to the Eos defaults.
